Calculus Problem Solving: Step by Step Examples

Calculus Problem solving is a wide topic covering hundreds of possibilities from finding lengths and areas to calculating rates of change and continuity of functions.

Calculus Problem Solving: Contents

Click on a topic to go to that article:

  1. Analytic Geometry:
  2. Business:
  3. Derivatives:
  4. Functions:
  5. Integrals:
  6. Limits:
  7. Optimization
  8. Physics:
  9. Pre-Calc:
  10. Sequence and Series:
  11. Volume:
  12. Word Problems Index
  13. TI 89 Calculus: Step by Step

The Tautochrone Problem / Brachistrone Problem

The tautochrone problem addresses finding a curve down which a mass placed anywhere on the curve will reach the bottom in the same amount time, assuming uniform gravity. The solution, discovered in May 1697 by at least five different mathematicians, is an (inverted) cycloid [1]. A similar problem is the brachistochrone problem, which asks the question: What is the curve of fastest descent? The solution is also a cycloid.

inverted cycloid
An inverted cycloid is the shortest path which a ball will roll down in the shortest time [2].

History of the Tautochrone Problem

The tautochrone problem goes back to the time of Galileo (1564-1642), who discovered that large, high-speed pendulum swings or small, low-speed swings take about the same length of time. He later realized he could use the principle to construct a clock, but he lacked the mechanical skills needed to actually build one. Later on, Christiaan Huygens (1629-1695) constructed the first working model of the cycloidal pendulum. Several of his pendulum clocks to determine longitude at sea were built and tested in 1662. In his book, Horologium Oscillatorium, Huygens proved that the cycloid is tautochronous [3], which means “occupies the same time”.

During his study of pendulums, Huygens discovered that a ball rolling back and forth on an inverted cycloid completes a full “swing” in exactly the same amount of time. He solved the tautochrone problem without calculus, using Euclidean geometry [4]. In addition to the cycloid, there are an infinite number of tautochrone curves which are solutions to the problem [5]. One way to solve the problem is with Laplace Transforms [6].

What is the Integral Transform?

The integral transform is a way to solve challenging problems by transforming coordinates into another space, via integration, where the problem is easier to solve. The solution is then transformed back into the original coordinates with an inverse transform.

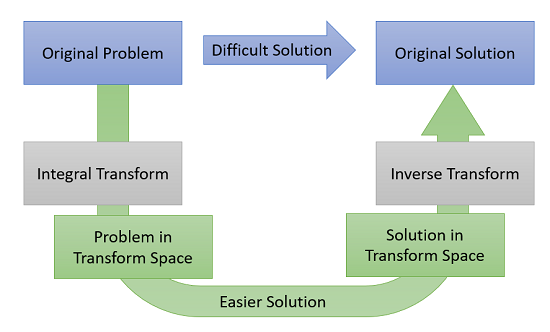

integral transform flow 2

Integral transforms are applied to Initial Boundary Value Problems (IBVP) as follows [1]:

  1. Apply a transform to one independent variable of the partial differential equation. This eliminates any partial derivatives associated with that variable.
  2. Solve the transformed PDE (if this isn’t possible, the equation can be transformed again).
  3. Invert the transforms to convert the solution to the solution of the original IBVP.

Types of Integral Transform

There are an infinite number of transforms. The most commonly used transforms in calculus are the Laplace transform and the Fourier transform. Fourier transforms are widely used in engineering and physics, while the Laplace transform is an efficient way of solving some ordinary and partial differential equations. However, there is really only one difference between the two methods: Laplace transforms can be defined for unstable systems with the Fourier transform cannot [2]. They are named after the mathematicians who originally worked on them: Laplace and Fourier.

Other types of commonly used transformations include:

  • Fourier-cosine transform,
  • Fourier-sine transform,
  • Hankel transform,
  • Mellin transform.

Which one you use is usually determined by the boundary condition. For example, the ideal transformation a problem defined on a semi-infinite domain (0, ∞) in space with a Dirichlet boundary condition is the Fourier sine transform.

Formal Definition of Integral Transform

More formally, the integral transform with integral kernel K is a mapping that takes function f(t) to a function f(x) with the rule [3]:
integral transform

Where a and b are real numbers (including infinity and negative infinity).

Integral Transform: References

[1] Lambers, J. (2013). Integral Transforms (Sine and Cosine Transforms). Retrieved May 10, 2021 from: https://www.math.usm.edu/lambers/mat417/lecture8.pdf
[2] M. Shehu & Weidong, Z. New Integral Transform: Shehu Transform a Generalization of Sumudu and Laplace Transform for Solving Differential Equations. Retrieved May 10, 2021 from: http://arxiv-export-lb.library.cornell.edu/pdf/1904.11370
[3] Green, L. (2020). The Laplace Transform. Retrieved May 9, 2021 from: https://math.libretexts.org/Bookshelves/Analysis/Supplemental_Modules_(Analysis)/Ordinary_Differential_Equations/6%3A_Power_Series_and_Laplace_Transforms/6.6%3A_The_Laplace_Transform

Calculus Problem Solving Example: Path of a Baseball

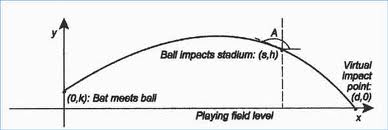

calculus problem solving path of a baseball
Image: Cal State LA

The path of a baseball hit by a player is called a parabola. Its graph can be represented in calculus using a pair of parametric functions with time as the dimension. These functions depend on several variables, including:

  • The height from the ground at which the baseball was hit,
  • Its angle of elevation with the horizontal,
  • The initial velocity of the baseball when hit.

Wind speed is another factor that will affect the path of the baseball, but this factor forms complex equations and is not dealt with in these simplified parametric equations.

Path of a baseball: Steps

Step 1: Define the variables used in both the parametric equations.

  • Represent the height in feet by ‘h’,
  • The angle in degrees by ‘a’,
  • The initial velocity in feet per second by ‘v’
  • The time in seconds by ‘t’.

Step 2: Write an equation for the horizontal motion of the baseball as a function of time:

  • x(t) = v * Cos(a) * t.

Step 3: Write an equation to describe the vertical motion of the baseball as a function of time:

  • y (t) = h + v * Sin(a) * t – 16 * t2.

In this formula, t2 is the square of the variable ‘t’, which is simply t * t, or t2.

The pair of x(t) and y(t) equations are the required parametric equations that describe the path of the baseball in calculus.

Tips:

  1. If the initial velocity is known with the unit of miles per hour (mph), it can be converted to the required unit of feet per second (fps) unit. 5280 feet make a mile, 60 minutes make an hour and 60 seconds make a minute. Accordingly, the mph value has to be multiplied by 1.467 to get the fps value.
  2. The value of the trigonometric functions Cos(a) and Sin(a) can be found by using a look-up table or simply by using a calculator. If the ball was hit along the ground, the angle ‘a’ is zero.

References

[1] Malo, R. (2016). The Tautochrone Problem. Retrieved April 11, 2021 from: https://math.montana.edu/malo/172f16/Tautochrone.pdf
[2] Larson, R. & Edwards, B. (2009). Calculus, 9th Edition. Brooks Cole.
[3] MacTutor. Christiaan Huygens. Retrieved April 11, 2021 from: https://mathshistory.st-andrews.ac.uk/Biographies/Huygens/#:~:text=Huygens%20was%20elected%20to%20the,with%20a%20spring%20regulated%20clock.
[4] Swift, J. Cycloid. Retrieved April 11, 2021 from: https://oak.ucc.nau.edu/jws8/dpgraph/cycloid.html
[5] Pedro, T. et al. Is the tautochrone curve unique? Retrieved April 11, 2021 from: https://ui.adsabs.harvard.edu/abs/2016AmJPh..84..917T/abstract
[6] Gulas, M. (2018). The Pope’s Rhinoceros and Quantum Mechanics. Retrieved April 11, 2021 from: https://scholarworks.bgsu.edu/cgi/viewcontent.cgi?article=1469&context=honorsprojects
