## What is an Interquartile Range?

The **interquartile range** is a measure of where the “middle fifty” is in a data set. Where a range is a measure of where the beginning and end are in a set, **an interquartile range is a measure of where the bulk of the values lie.** That’s why it’s preferred over many other measures of spread when reporting things like school performance or SAT scores.

The interquartile range formula is the first quartile subtracted from the third quartile:

**IQR = Q**

_{3}– Q_{1}.Watch the video for how to calculate the interquartile range by hand:

## Contents:

**Solving by hand:
**

- Solve the formula by hand (odd set of numbers).
- What if I have an even set of numbers?
- Find an interquartile range for an
**odd**set of numbers:**Second Method** - Box Plot interquartile range: How to find it

**Using Technology:**

- Interquartile Range in Minitab
- Interquartile Range in Excel
- Interquartile Range in SPSS
- Interquartile Range on the TI83
- Q1, Q3 and the IQR on the TI89

**General info:**

- What is an Interquartile range?
- What is the Interquartile Range Formula?
- IQR as a Test for Normal Distribution
- What is an Interquartile Range used for?
- History of the Interquartile Range.

## Solve the formula by hand.

## Steps:

- Step 1:
**Put the numbers in order.**

1, 2, 5, 6, 7, 9, 12, 15, 18, 19, 27. - Step 2:
**Find the median**.

1, 2, 5, 6, 7**, 9**, 12, 15, 18, 19, 27. - Step 3:
**Place parentheses around the numbers above and below the median.**

Not necessary**statistically**, but it makes Q1 and Q3 easier to spot.

(1, 2, 5, 6, 7), 9, (12, 15, 18, 19, 27). - Step 4:
**Find Q1 and Q3**

Think of Q1 as a median in the lower half of the data and think of Q3 as a median for the upper half of data.

(1, 2,**5**, 6, 7)**, 9**, ( 12, 15,**18**, 19, 27). Q1 = 5 and Q3 = 18. - Step 5:
**Subtract Q1 from Q3 to find the interquartile range**.

18 – 5 = 13.

Like the explanation? Check out the Practically Cheating Statistics Handbook, which has hundreds more step-by-step explanations, just like this one!

## What if I Have an Even Set of Numbers?

**Example question**: Find the IQR for the following data set: 3, 5, 7, 8, 9, 11, 15, 16, 20, 21.

- Step 1:
**Put the numbers in order**.

3, 5, 7, 8, 9, 11, 15, 16, 20, 21. - Step 2:
**Make a mark in the center of the data**:

3, 5, 7, 8, 9,**|**11, 15, 16, 20, 21. - Step 3:
**Place parentheses around the numbers above and below the mark you made in Step 2–it makes Q1 and Q3 easier to spot.**

(3, 5, 7, 8, 9),**|**(11, 15, 16, 20, 21). - Step 4:
**Find Q1 and Q3**

Q1 is the median (the middle) of the lower half of the data, and Q3 is the median (the middle) of the upper half of the data.

(3, 5,**7**, 8, 9),**|**(11, 15,**16,**20, 21). Q1 = 7 and Q3 = 16. - Step 5:
**Subtract Q1 from Q3**.

16 – 7 = 9.

*This is your IQR*.

## Find an interquartile range for an **odd **set of numbers: **Alternate Method**

As you may already know, nothing is “set in stone” in statistics: when some statisticians find an interquartile range for a set of odd numbers, they include the median in *both* both quartiles. For example, in the following set of numbers: 1, 2, 5, 6, 7, 9, 12, 15, 18, 19, 27 some statisticians would break it into two halves, including the median (9) in both halves:

(1, 2, 5, 6, 7, 9), (9, 12, 15, 18, 19, 27)

This leads to two halves with an even set of numbers, so you can follow the steps above to find the IQR.

Back to Top

## Box Plot interquartile range: How to find it

Watch the video for the steps.

## Box Plot interquartile range: How to find it

**Example question:** Find the interquartile range for the above box plot.

**Step 1:***Find Q1*.Q1 is represented by the left hand edge of the “box” (at the point where the whisker stops).

In the above graph, Q1 is approximately at

**2.6**. (A complete explanation of Q1 is here: The five number summary.)**Step 2:***Find Q3*.

Q3 is represented on a boxplot by the right hand edge of the “box”.

Q3 is approximately**12**in this graph.**Step 3:***Subtract the number you found in step 1 from the number you found in step 3.*

This will give you the interquartile range. 12 – 2.6 =**9.4**.

That’s it!

## Interquartile Range in Minitab

Watch the video for step-by-step directions:

### Interquartile Range in Minitab: Steps

**Example question: **Find an interquartile range in Minitab for the Grade Point Average (GPA) in the following data set:

Grade Point Average (GPA): 1(3.2), 1(3.1), 2(3.5), 2(2.0), 3(1.9), 3(4.0), 3(3.9), 4(3.8), 4(2.9), 5(3.9), 5(3.2), 5(3.3), 6(3.4), 6(2.6), 6(2.5), 7(2.0), 7(1.5), 8(4.0), 8(2.0).

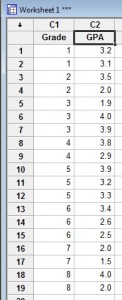

Step 1: **Type your data into a Minitab worksheet**. Enter your data into one or two columns.

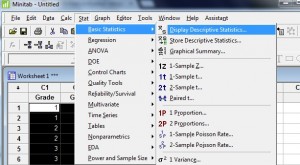

Step 2: **Click “Stat,”** then click “Basic Statistics,” then click “Display Descriptive Statistics” to open the Descriptive Statistics menu.

Step 3: **Click a variable name in the left window **and then click the “Select” button to transfer the variable name to the right-hand window.

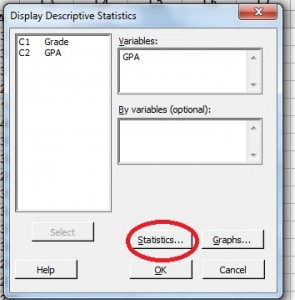

Step 4: **Click the “Statistics” button.**

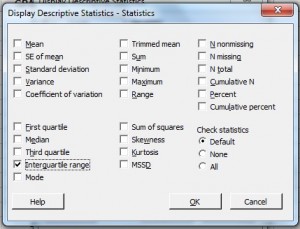

Step 5: **Check “Interquartile Range.”**

.

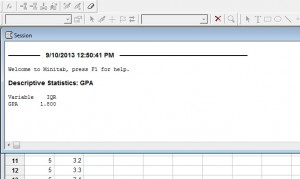

Step 6: **Click the “OK” button (a new window will open with the result).** The IQR for the GPA in this particular data set is 1.8.

*That’s it!*

**Tip**: If you don’t see descriptive statistics show in a window, click “Window” on the toolbar, then click “Tile.” Click the Session window (this is where descriptive statistics appear) and then scroll up to see your results.

## Interquartile Range in Excel 2007

## How to Find an Interquartile Range Excel 2007

Watch the video or read the steps below to find an interquartile range in Excel 2007:

**Steps:
**Step 1: Enter your data into a single Excel column on a worksheet. For example, type your data in cells A2 to A10. Don’t leave any gaps in your data.

Step 2: Click a blank cell (for example, click cell B2) and then type **=QUARTILE(A2:A10,1)**. You’ll need to replace A2:A10 with the actual values from your data set. For example, if you typed your data into B2 to B50, the equation is **=QUARTILE(B2:B50,1)**. The “1” in this Excel formula(A2:A10,**1**) represents the first quartile (i.e the point lying at 25% of the data set).

Step 3: Click a second blank cell (for example, click cell B3) and then type **=QUARTILE(A2:A10,3)**. Replace A2:A10 with the actual values from your data set. The “3” in this Excel formula (A2:A10,**3**) represents the third quartile (i.e. the point lying at 75% of the data set).

Step 4: Click a third blank cell (for example, click cell B4) and then type **=B3-B2**. If your quartile functions from Step 2 and 3 are in different locations, change the cell references.

Step 5: Press the “Enter” key. Excel will return the IQR in the cell you clicked in Step 4

*That’s it!*

## How to Find an Interquartile Range in SPSS

Like most technology, SPSS has **several ways **that you can calculate the IQR. However, if you click on the most intuitive way you would expect to find it (“Descriptive Statistics > Frequencies”), the surprise is that it won’t list the IQR (although it will list the first, second and third quartiles). You *could* take this route and then subtract the third quartile from the first to get the IQR. However, the easiest way to find the interquartile range in SPSS by using the “Explore” command. If you have already typed data into your worksheet, skip to Step 3.

Watch the video for the steps:

Can’t see the steps? Click here.

### Steps

Step 1: **Open a new data file in SPSS.** Click “File,” mouse over “New” and then click “Data.”

Step 2: **Type your data into columns in the worksheet.** You can use as many columns as you need, but don’t leave blank rows or spaces between your data. See: How to Enter Data into SPSS.

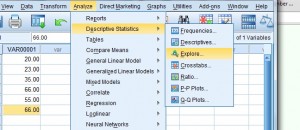

Step 3: **Click “Analyze,”** then mouse over “Descriptive Statistics.” Click “Explore” to open the “Explore” dialog box.

Step 4: **Click the variable name** (that’s just a fancy name for the column heading), then **click the top arrow **to move the variable into the “Dependent list” box.

Step 5: **Click “OK.” **The interquartile range is listed in the *Descriptives* box.

**Tip:** This example has only one list typed into the data sheet, but you may have several to choose from depending on how you entered your data. Make sure you select the right variable (column names) before proceeding. If you want more memorable variable names, change the column title by clicking the “variable view” button at the very bottom left of the worksheet. Type in your new variable name and then return to data view by clicking the “data view” button.

Back to Top

## What is an Interquartile Range?

Imagine all the data in a set as points on a number line. For example, if you have 3, 7 and 28 in your set of data, imagine them as points on a number line that is centered on 0 but stretches both infinitely below zero and infinitely above zero. Once plotted on that number line, the smallest data point and the biggest data point in the set of data create the boundaries (i.e. a lower bound and an upper bound) of an interval of space on the number line that contains all data points in the set. The **interquartile range** (IQR) is the length of the middle 50% of that interval of space.

If you want to know that the IQR is in formal terms, the IQR is calculated as: The difference between the third or

**upper quartile**and the first or

**lower quartile**. Quartile is a term used to describe how to divide the set of data into four equal portions (think

*quarter*).

### IQR Example

If you have a set containing the data points 1, 3, 5, 7, 8, 10, 11 and 13, the first quartile is 4, the second quartile is 7.5 and the third quartile is 10.5. Draw these points on a number line and you’ll see that those three numbers divide the number line in quarters from 1 to 13. As such, the **IQR **of that data set is 6.5, calculated as 10.5 minus 4. The first and third quartiles are also sometimes called the 25th and 75th percentiles because those are the equivalent figures when the data set is divided into percents rather than quarters.

## Interquartile Range using the TI83

Watch the video for the steps:

While you can use the nifty online interquartile range calculator on this website, that might not be an option in a quiz or test. Most instructors allow the use of a TI-83 on tests, and it’s even one of the few calculators allowed in the AP Statistics exam. Finding the TI 83 interquartile range involves nothing more than entering your data list and pushing a couple of buttons.

**Example problem: **Find the TI 83 interquartile range for the heights of the top 10 buildings in the world (as of 2009). The heights, (in feet) are: 2717, 2063, 2001, 1815, 1516, 1503, 1482, 1377, 1312, 1272.

### Steps

**Step 1:** Enter the above data into a list on the TI 83 calculator. Press the STAT button and then press ENTER. Enter the first number (2717), and then press ENTER. Continue entering numbers, pressing ENTER after each entry.

**Step 2:** Press the STAT button.

**Step 3:** Press the right arrow button (the arrow keys are located at the top right of the keypad) to select “Calc.”

**Step 4:** Press ENTER to highlight “1-Var Stats.”

**Step 5:** Press ENTER again to bring up a list of stats.

**Step 6:**Scroll down the list with the arrow keys to find Q1 and Q3. Write those numbers down. You *could* copy and paste the numbers but unfortunately, Texas Instruments doesn’t make this easy:

- Use the arrow keys to place the cursor at the beginning of the

text that you want to highlight. - Using the TI Keyboard, press and hold down the Shift key, and then use the arrow keys to highlight the text.
- Release the Shift key and arrow key.

The copy and paste menu should appear, enabling you to copy and paste the data. You would have to do this twice (returning to the HOME screen each time), so it’s much faster just to write the numbers down.

Step 7:Subtract Q1 from Q3 to find the **IQR** (strong>624 feet for this set of numbers).

*That’s it! *

Back to Top

## How to Find Q1, Q3 and the Interquartile Range TI 89

**Example problem**: Find Q_{1}, Q_{3}, and the IQR for the following list of numbers: 1, 9, 2, 3, 7, 8, 9, 2.

**Step 1:** *Press * APPS. Scroll to Stats/List Editor (use the arrow keys on the keypad to scroll). Press ENTER. If you don’t have the stats/list editor you can download it here.

**Step 2:** *Clear the list editor of data:* press F1 8.

**Step 3:*** Press* ALPHA 9 ALPHA 1 ENTER. This names your list “IQ.”

**Step 4:** *Enter your numbers, one at a time.* Follow each entry by pressing the ENTER *key.* For our group of numbers, enter

1,9,2,3,7,8,9,2

**Step 5:*** Press F4, then* ENTER (for the 1-var stats screen).

**Step 6:** *Tell the calculator you want stats for the list called “IQ” by entering *ALPHA 9 ALPHA 1 into the “List:” box. The calculator should automatically put the cursor there for you. Press ENTER twice.

**Step 7:***Read the results.* Q_{1} is listed as Q1X (in our example, Q1X=2). Q_{3} is listed as Q3X (Q3X=8.5). To find the IQR, subtract Q_{1} from Q_{3} on the Home screen. The IQR is 8.5-2=6.5.

*That’s it!*

## What is The Interquartile Range Formula?

The IQR formula is:

IQR = Q_{3} – Q_{1}

Where Q_{3} is the upper quartile and Q_{1} is the lower quartile.

## IQR as a test for normal distribution

Use the interquartile range formula with the mean and standard deviation to test whether or not a population has a normal distribution. The formula to determine whether or not a population is normally distributed are:

Q_{1} – (σ z_{1}) + X

Q_{3} – (σ z_{3}) + X

Where Q_{1} is the first quartile, Q_{3} is the third quartile, σ is the standard deviation, z is the standard score (“z-score“) and X is the mean. In order to tell whether a population is normally distributed, solve both equations and then compare the results. If there is a significant difference between the results and the first or third quartiles, then the population is *not *normally distributed.

## What is an Interquartile Range Used For?

The IQR is used to measure how spread out the data points in a set are from the mean of the data set. The higher the IQR, the more spread out the data points; in contrast, the smaller the IQR, the more bunched up the data points are around the mean. The IQR range is one of many measurements used to measure how spread out the data points in a data set are. It is best used with other measurements such as the median and total range to build a complete picture of a data set’s tendency to cluster around its mean.

Back to Top

### Where Does the term Interquartile Range Come From?

Who invented the term “Interquartile Range?” In order to find that out, we have to go back to the 19th century.

## History

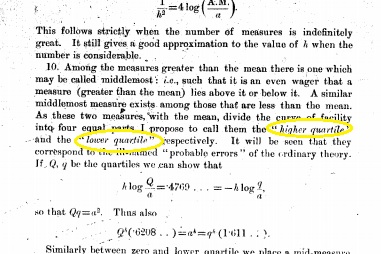

British physician Sir Donald MacAlister used the terms *lower quartile* and *higher quartile* in the 1879 publication, the Law of the Geometric Mean. Proc. R. Soc. XXIX, p. 374: ” “As these two measures, with the mean, divide the curve of facility into four equal parts, I propose to call them the ‘higher quartile’ and the ‘lower quartile’ respectively.”

Although a physician by trade, he was gifted with mathematics and achieved the highest score in the final mathematics exams at Cambridge University in 1877. He spoke nineteen languages including English, Czech and Swedish.

Macalister’s paper, the Law of the Geometric Mean was actually in response to a question put forward by Francis Galton (inventor of the Galton board). However, it wasn’t until 1882 that Galton (“Report of the Anthropometric Committee”) used the upper quartile and lower quartile values and the term “interquartile range” —defined as twice the probable error. Galton wasn’t just a statistician—he was also an anthropologist, geographer, proto-genetecist and psychometrician who produced more than 340 books. He also coined the statistical terms “correlation” and “regression toward the mean.”

## References

Gonick, L. and Smith, W. The Cartoon Guide to Statistics. New York: Harper Perennial, pp. 20-21, 1993.
